Accuracy#

This benchmark focuses on comparing the accuracy of pyMultiFit’s statistical distributions compared to the well-established SciPy library. The focus is on ensuring that pyMultiFit provides reliable results that closely match theoretical values and SciPy outputs, which are widely trusted in the scientific community.

What is Tested?#

  • Probability Density Function (PDF): Compares the computed values for given inputs against the expected results and SciPy outputs.

  • Cumulative Distribution Function (CDF): Verifies that cumulative probabilities match theoretical predictions and SciPy results.

Benchmark setup#

To test accuracy:

  • Both pyMultiFit and SciPy are run on the same input data, using distributions like Gaussian, Beta, and Laplace.

  • Results are compared using metrics such as absolute error, relative error, and visual plots.

  • A range of parameter values and edge cases are included to evaluate robustness and consistency.

Testing#

[1]:

import numpy as np
import scipy.stats as ss

from pymultifit import EPSILON
import pymultifit.distributions as pd
from functions import test_and_plot

[2]:

np.random.seed(43)

[3]:

edge_cases = [np.array([EPSILON, 1e-10, 1e-5, 1, 1e2, 1e3, 1e4, 1e5, 1e7, 0.5e8, 1e10])]
general_cases = [np.logspace(-10, 10, 5_000)]

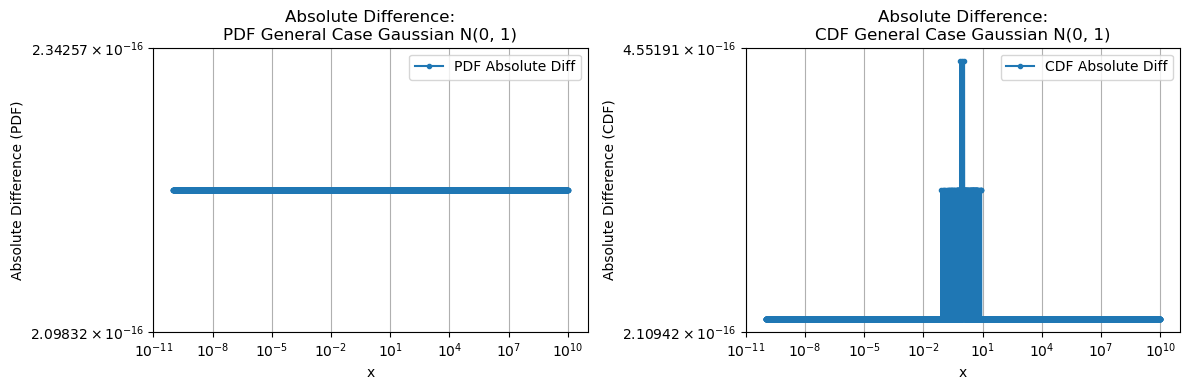

norm(loc=0, scale=1)#

[4]:

custom_dist = pd.GaussianDistribution(normalize=True)
scipy_dist = ss.norm()

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title="Gaussian N(0, 1)")
_images/_bm_accuracy_6_0.png
_images/_bm_accuracy_6_1.png

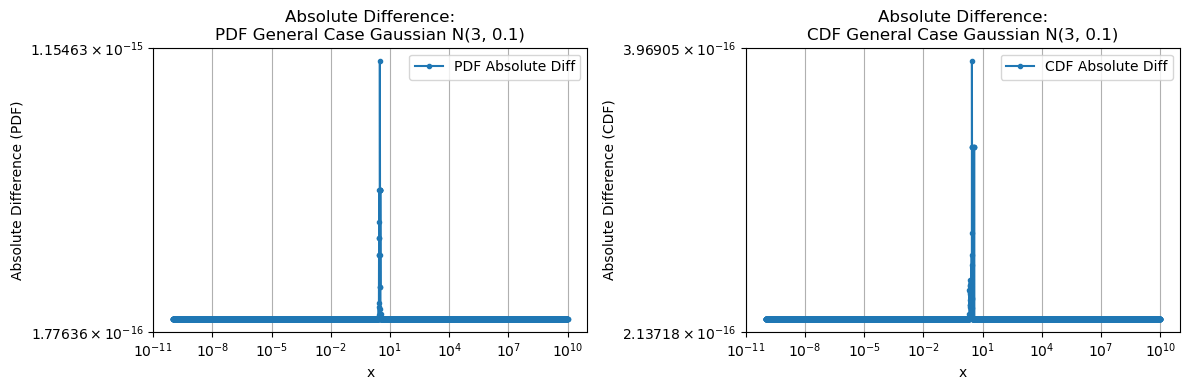

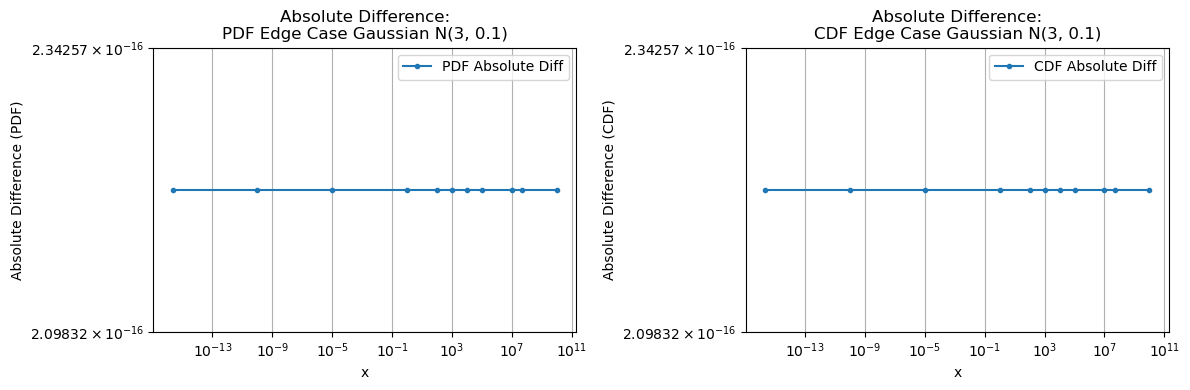

norm(loc=3, scale=0.1)#

[5]:

custom_dist = pd.GaussianDistribution(mu=3, std=0.1, normalize=True)
scipy_dist = ss.norm(loc=3, scale=0.1)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Gaussian N(3, 0.1)')
_images/_bm_accuracy_8_0.png
_images/_bm_accuracy_8_1.png

laplace(loc=0, scale=1)#

[6]:

custom_dist = pd.LaplaceDistribution(normalize=True)
scipy_dist = ss.laplace()

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Laplace L(0, 1)')
_images/_bm_accuracy_10_0.png
_images/_bm_accuracy_10_1.png

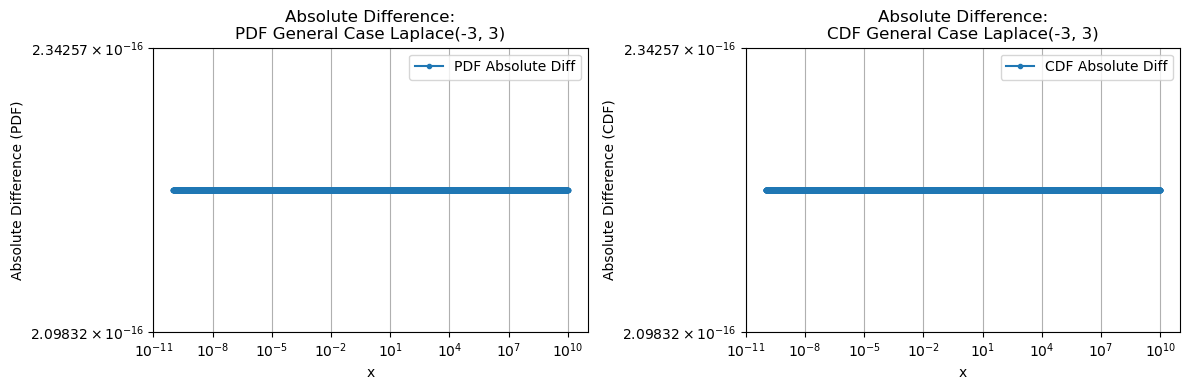

laplace(loc=-3, scale=3)#

[7]:

custom_dist = pd.LaplaceDistribution(mean=-3, diversity=3, normalize=True)
scipy_dist = ss.laplace(loc=-3, scale=3)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Laplace(-3, 3)')
_images/_bm_accuracy_12_0.png
_images/_bm_accuracy_12_1.png

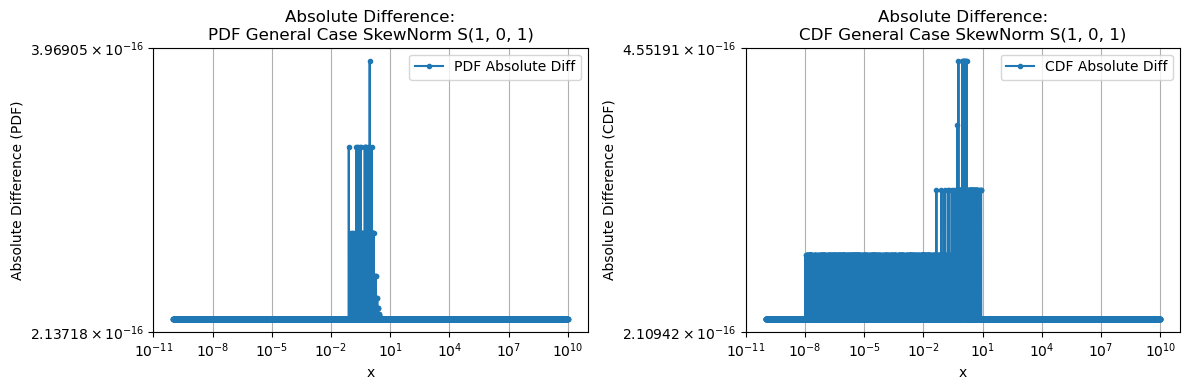

skewnorm(a=1, loc=0, scale=1)#

[8]:

custom_dist = pd.SkewNormalDistribution(normalize=True)
scipy_dist = ss.skewnorm(a=1)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='SkewNorm S(1, 0, 1)')
_images/_bm_accuracy_14_0.png
_images/_bm_accuracy_14_1.png

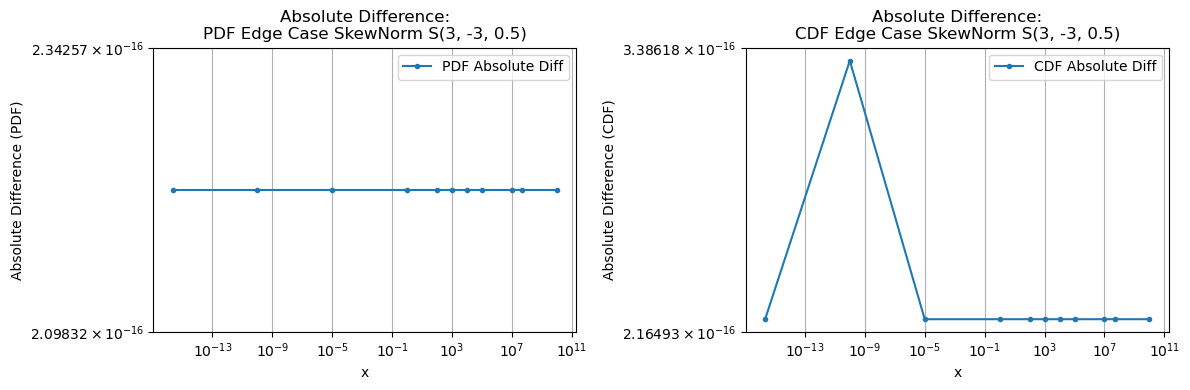

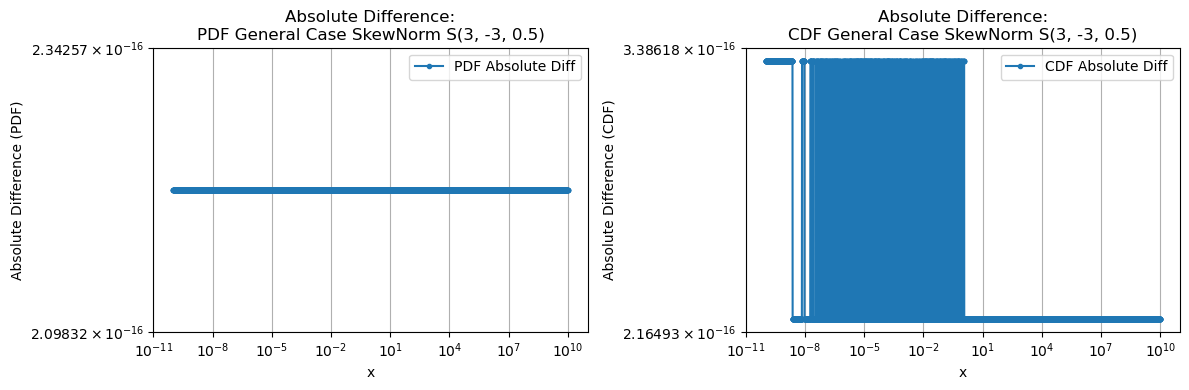

skewnorm(a=3, loc=-3, scale=0.5)#

[9]:

custom_dist = pd.SkewNormalDistribution(shape=3, location=-3, scale=0.5, normalize=True)
scipy_dist = ss.skewnorm(a=3, loc=-3, scale=0.5)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='SkewNorm S(3, -3, 0.5)')
_images/_bm_accuracy_16_0.png
_images/_bm_accuracy_16_1.png

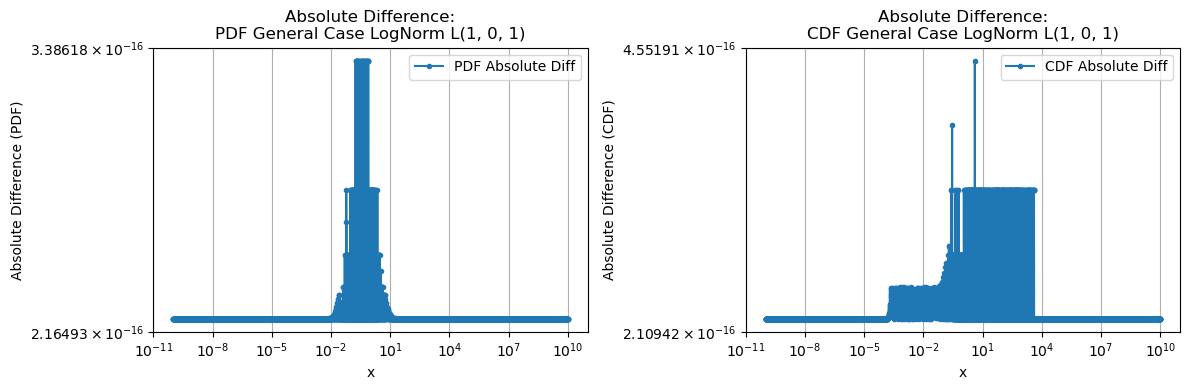

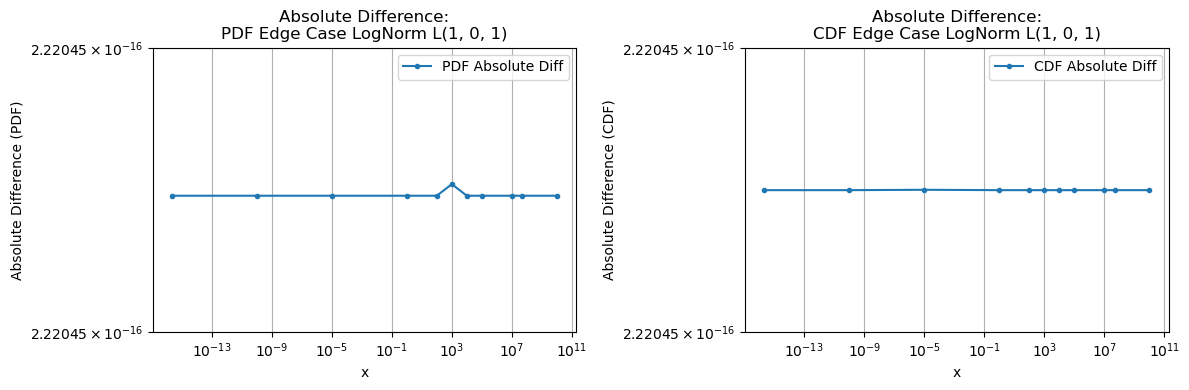

lognorm(s=1, loc=0, scale=1)#

[10]:

custom_dist = pd.LogNormalDistribution(mu=1, std=1, loc=0, normalize=True)
scipy_dist = ss.lognorm(s=1, loc=0, scale=1)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='LogNorm L(1, 0, 1)')
_images/_bm_accuracy_18_0.png
_images/_bm_accuracy_18_1.png

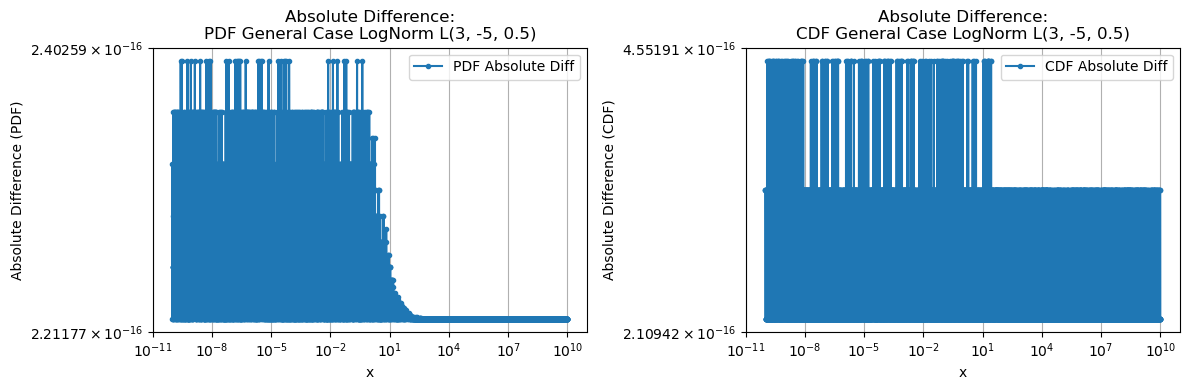

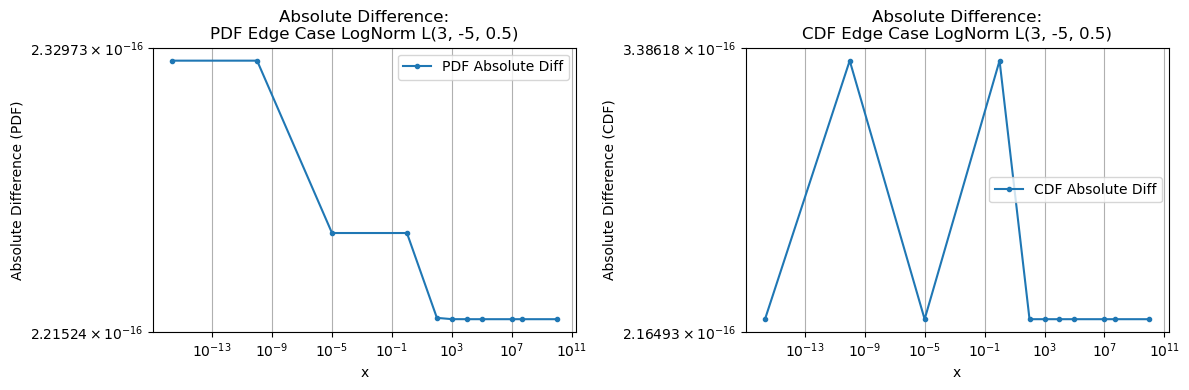

lognorm(s=3, loc=-5, scale=0.5)#

[11]:

custom_dist = pd.LogNormalDistribution(mu=0.5, std=3, loc=-5, normalize=True)
scipy_dist = ss.lognorm(s=3, loc=-5, scale=0.5)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='LogNorm L(3, -5, 0.5)')
_images/_bm_accuracy_20_0.png
_images/_bm_accuracy_20_1.png

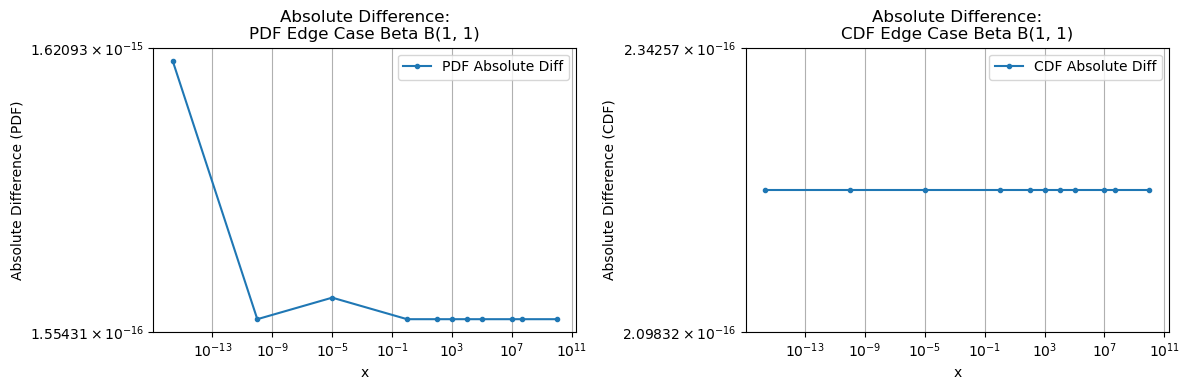

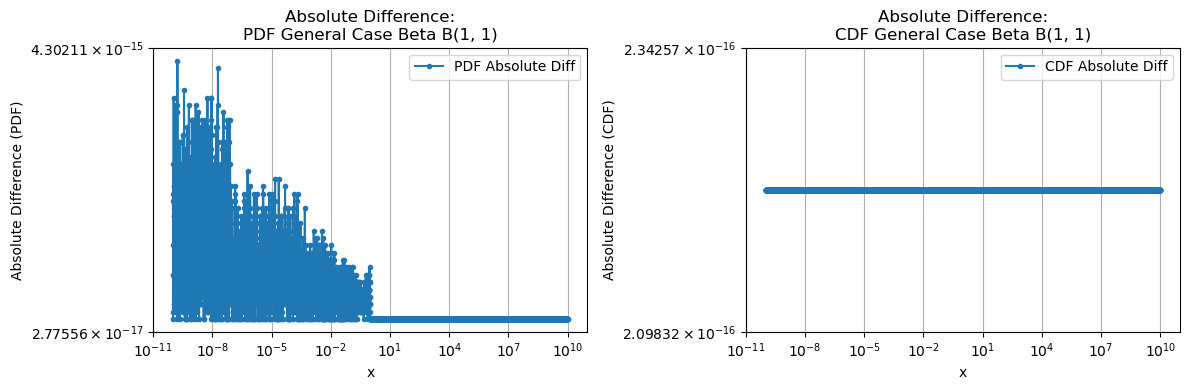

beta(a=1, b=1)#

[12]:

custom_dist = pd.BetaDistribution(alpha=1, beta=1, normalize=True)
scipy_dist = ss.beta(a=1, b=1)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Beta B(1, 1)')
_images/_bm_accuracy_22_0.png
_images/_bm_accuracy_22_1.png

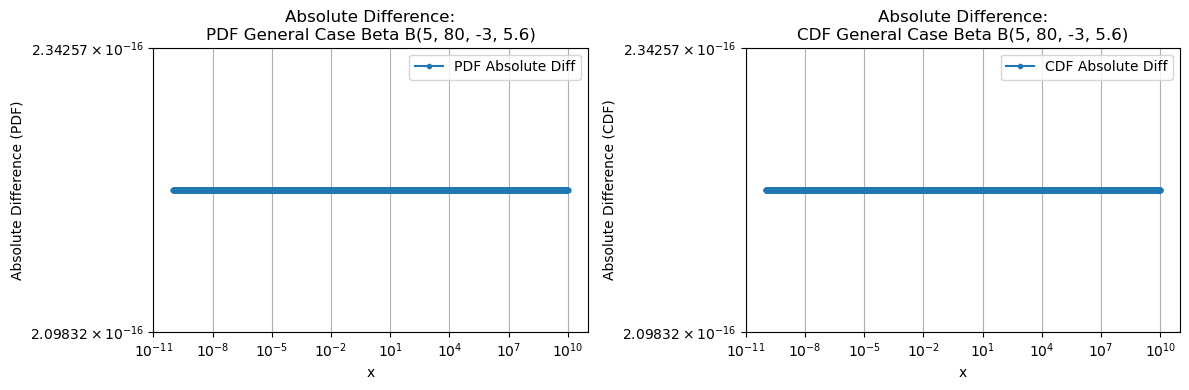

beta(a=5, b=80, loc=-3, scale=5)#

[13]:

custom_dist = pd.BetaDistribution(alpha=5, beta=80, loc=-3, scale=5.6, normalize=True)
scipy_dist = ss.beta(a=5, b=80, loc=-3, scale=5.6)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Beta B(5, 80, -3, 5.6)')

/home/syedalimohsinbukhari/PycharmProjects/pyMultiFit/src/pymultifit/distributions/utilities_d.py:123: RuntimeWarning: overflow encountered in power
  numerator = y**(alpha - 1) * (1 - y)**(beta - 1)
/home/syedalimohsinbukhari/PycharmProjects/pyMultiFit/src/pymultifit/distributions/utilities_d.py:123: RuntimeWarning: overflow encountered in multiply
  numerator = y**(alpha - 1) * (1 - y)**(beta - 1)
_images/_bm_accuracy_24_1.png
_images/_bm_accuracy_24_2.png

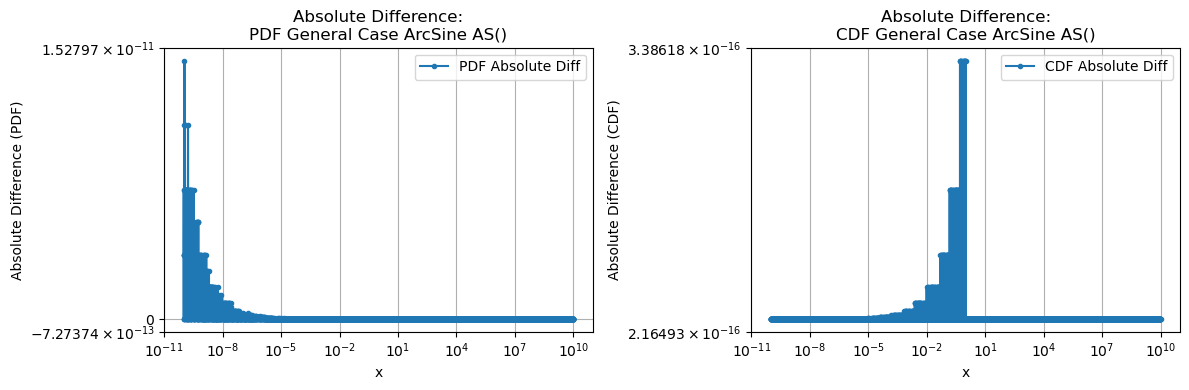

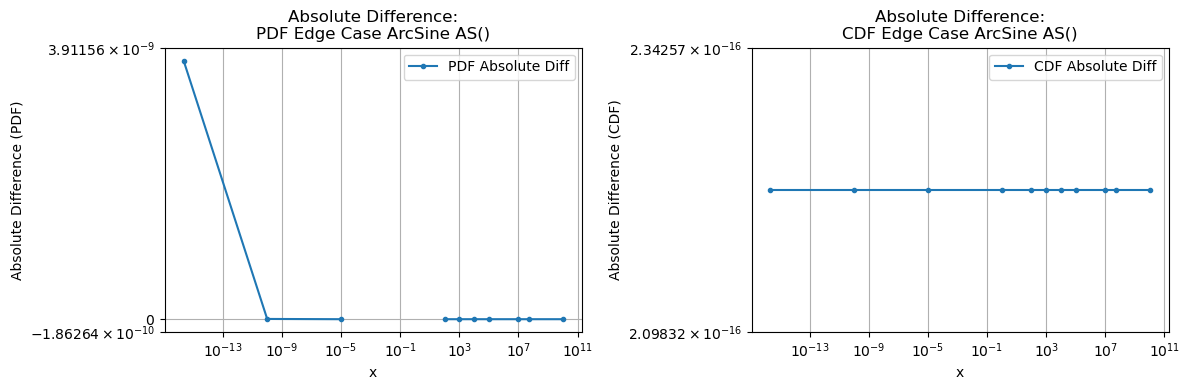

arcsine()#

[14]:

custom_dist = pd.ArcSineDistribution(normalize=True)
scipy_dist = ss.arcsine()

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='ArcSine AS()')

/home/syedalimohsinbukhari/PycharmProjects/pyMultiFit/src/pymultifit/distributions/utilities_d.py:123: RuntimeWarning: invalid value encountered in power
  numerator = y**(alpha - 1) * (1 - y)**(beta - 1)
/home/syedalimohsinbukhari/PycharmProjects/pyMultiFit/src/pymultifit/distributions/utilities_d.py:123: RuntimeWarning: divide by zero encountered in power
  numerator = y**(alpha - 1) * (1 - y)**(beta - 1)
/home/syedalimohsinbukhari/PycharmProjects/pyMultiFit/benchmarks/functions.py:26: RuntimeWarning: invalid value encountered in subtract
  pdf_abs_diff = np.abs(pdf_custom - pdf_scipy) + EPSILON
_images/_bm_accuracy_26_1.png
_images/_bm_accuracy_26_2.png

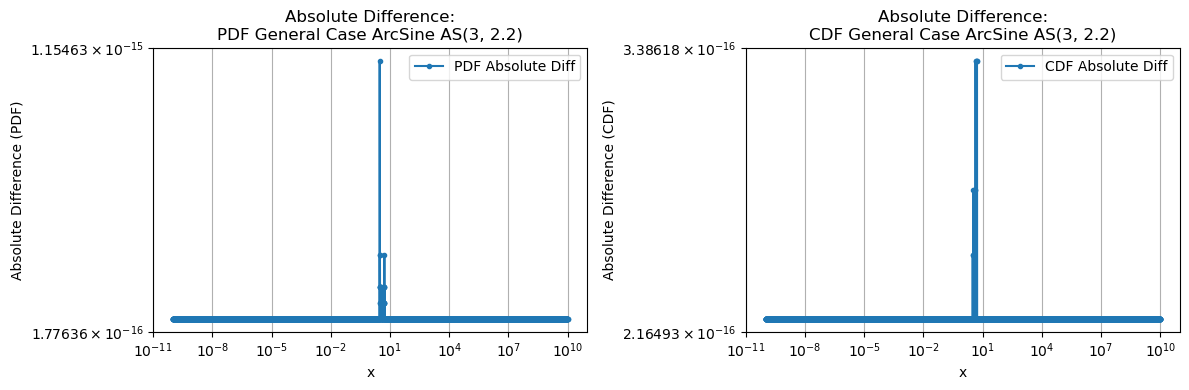

arcsine(loc=3, scale=2.2)#

[15]:

custom_dist = pd.ArcSineDistribution(loc=3, scale=2.2, normalize=True)
scipy_dist = ss.arcsine(loc=3, scale=2.2)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='ArcSine AS(3, 2.2)')
_images/_bm_accuracy_28_0.png
_images/_bm_accuracy_28_1.png

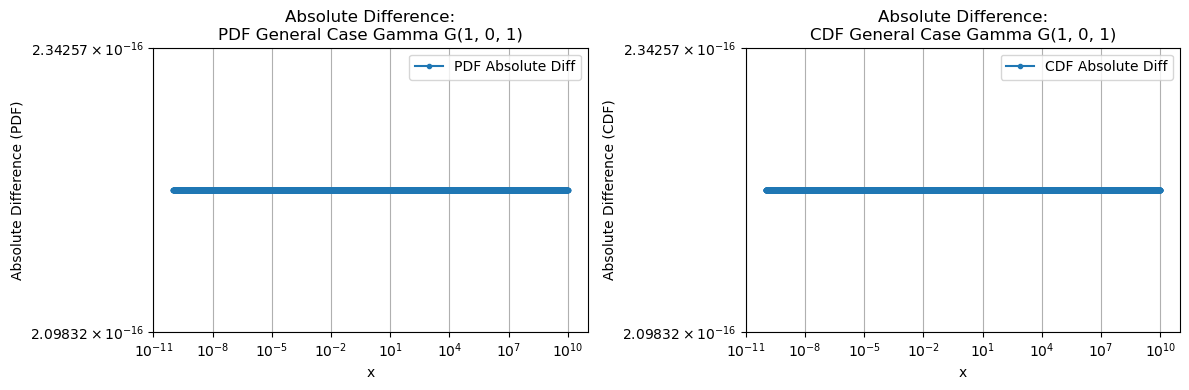

gamma(a=1, loc=0, scale=1)#

[16]:

custom_dist = pd.GammaDistributionSS(shape=1, scale=1, loc=0, normalize=True)
scipy_dist = ss.gamma(a=1, loc=0, scale=1)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Gamma G(1, 0, 1)')
_images/_bm_accuracy_30_0.png
_images/_bm_accuracy_30_1.png

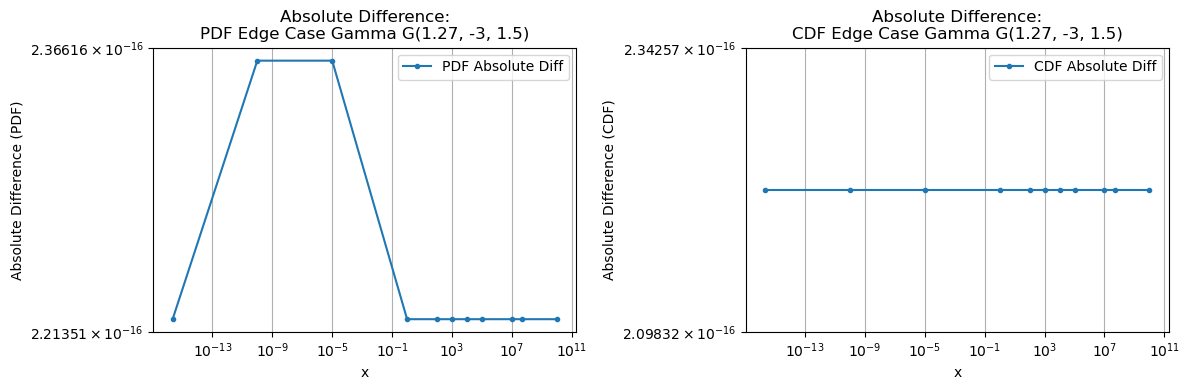

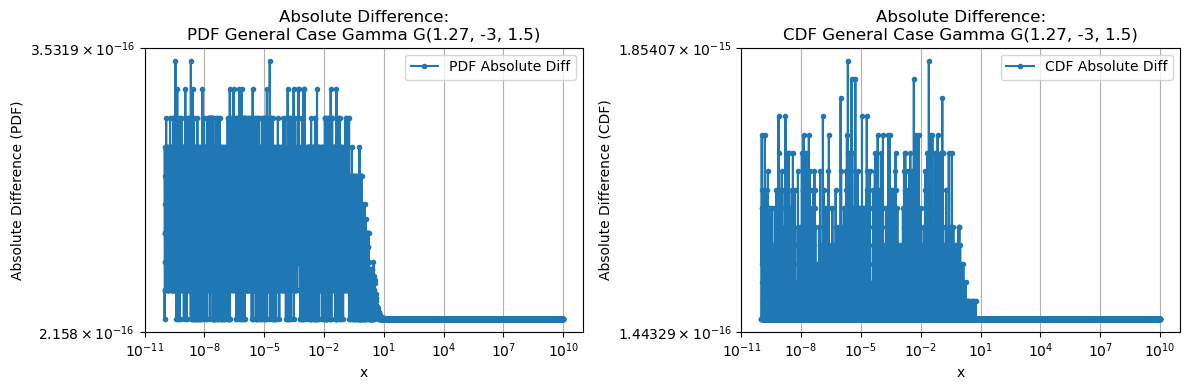

gamma(a=1.27, loc=-3, scale=1.5)#

[17]:

custom_dist = pd.GammaDistributionSS(shape=1.27, scale=1.5, loc=-3, normalize=True)
scipy_dist = ss.gamma(a=1.27, loc=-3, scale=1.5)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Gamma G(1.27, -3, 1.5)')
_images/_bm_accuracy_32_0.png
_images/_bm_accuracy_32_1.png

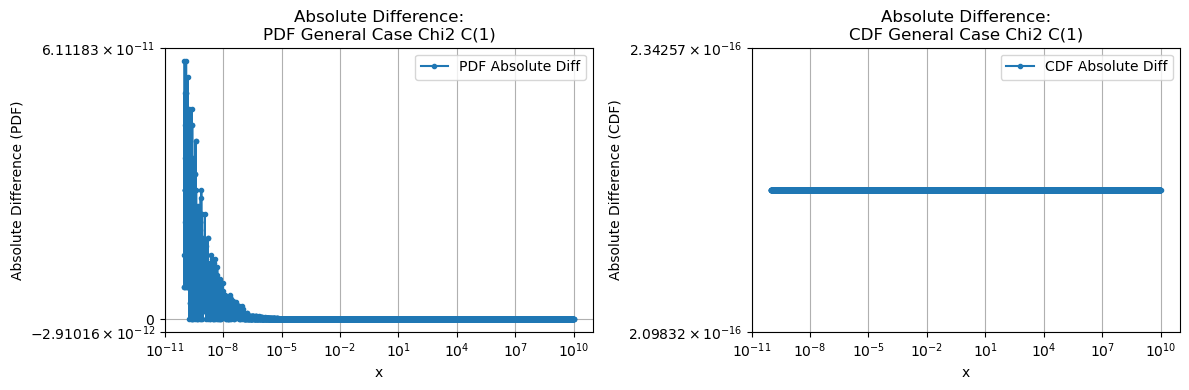

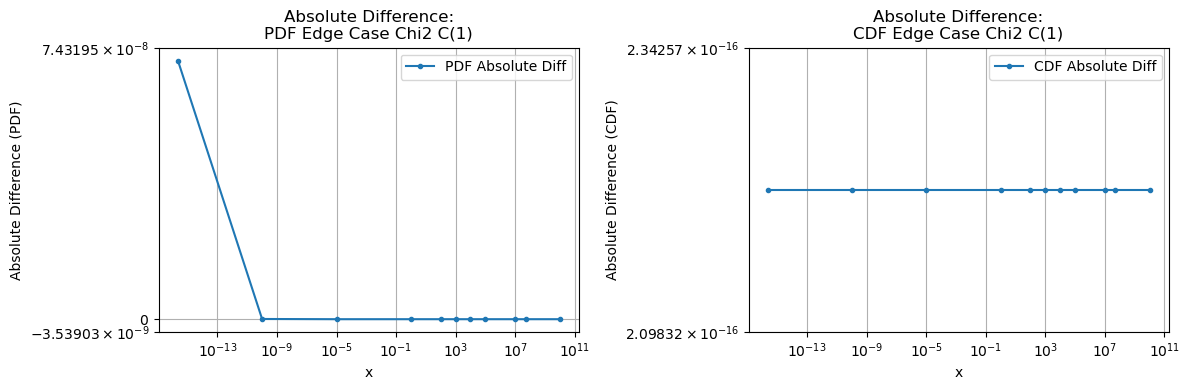

\(\chi^2\)(dof=1)#

[18]:

custom_dist = pd.ChiSquareDistribution(degree_of_freedom=1, normalize=True)
scipy_dist = ss.chi2(df=1)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Chi2 C(1)')
_images/_bm_accuracy_34_0.png
_images/_bm_accuracy_34_1.png

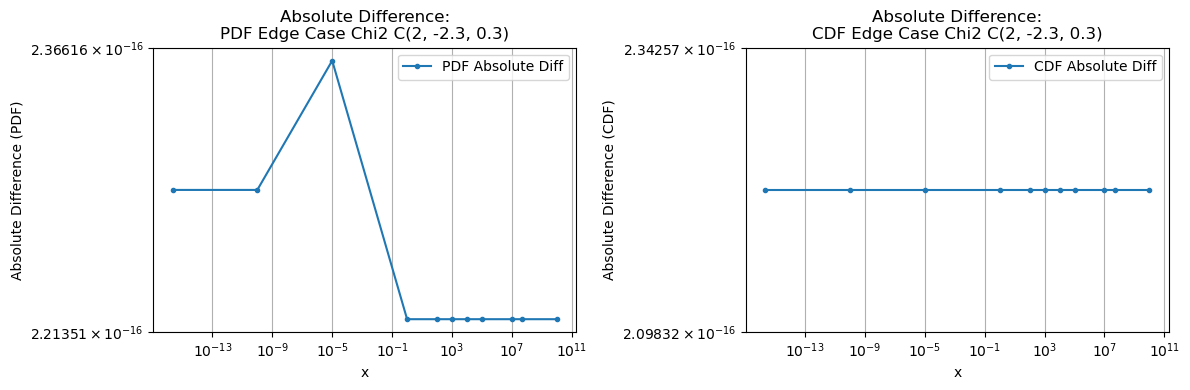

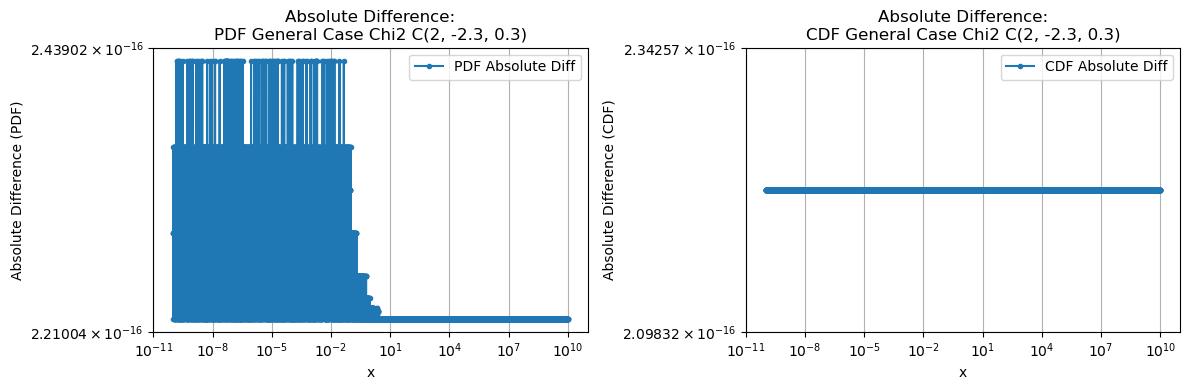

\(\chi^2\)(dof=2, loc=-2.3, scale=0.3)#

[19]:

custom_dist = pd.ChiSquareDistribution(degree_of_freedom=2, loc=-2.3, scale=0.3, normalize=True)
scipy_dist = ss.chi2(df=2, loc=-2.3, scale=0.3)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Chi2 C(2, -2.3, 0.3)')
_images/_bm_accuracy_36_0.png
_images/_bm_accuracy_36_1.png

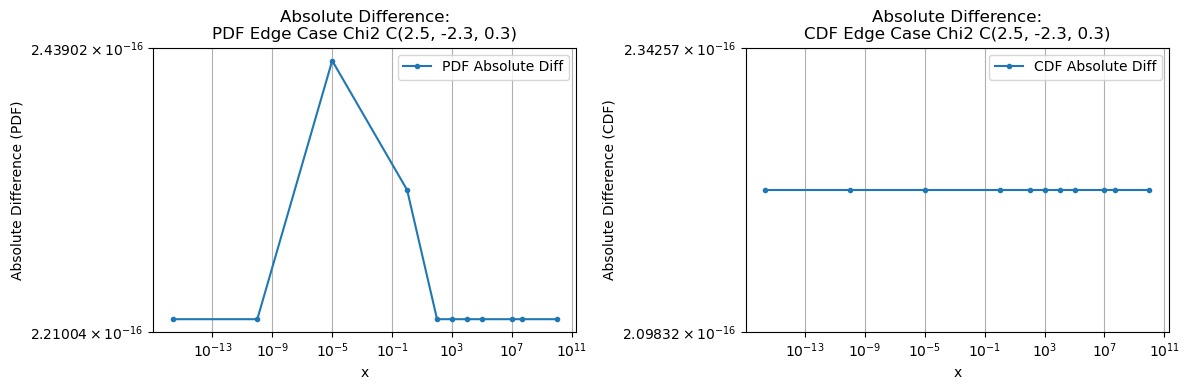

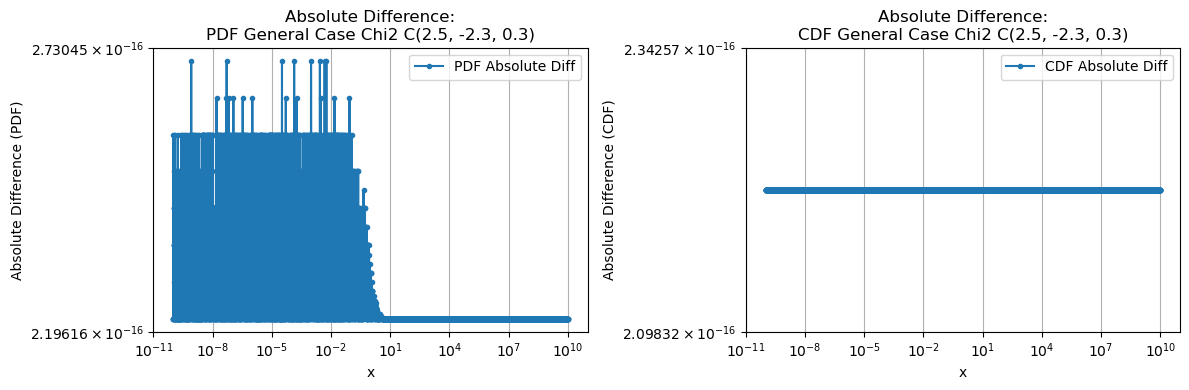

\(\chi^2\)(dof=2.5, loc=-2.3, scale=0.3)#

[20]:

custom_dist = pd.ChiSquareDistribution(degree_of_freedom=2.5, loc=-2.3, scale=0.3, normalize=True)
scipy_dist = ss.chi2(df=2.5, loc=-2.3, scale=0.3)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Chi2 C(2.5, -2.3, 0.3)')
_images/_bm_accuracy_38_0.png
_images/_bm_accuracy_38_1.png

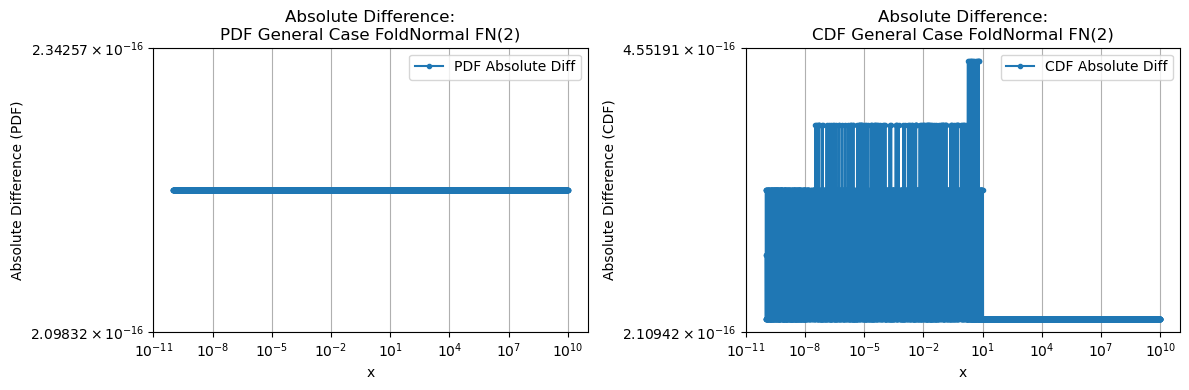

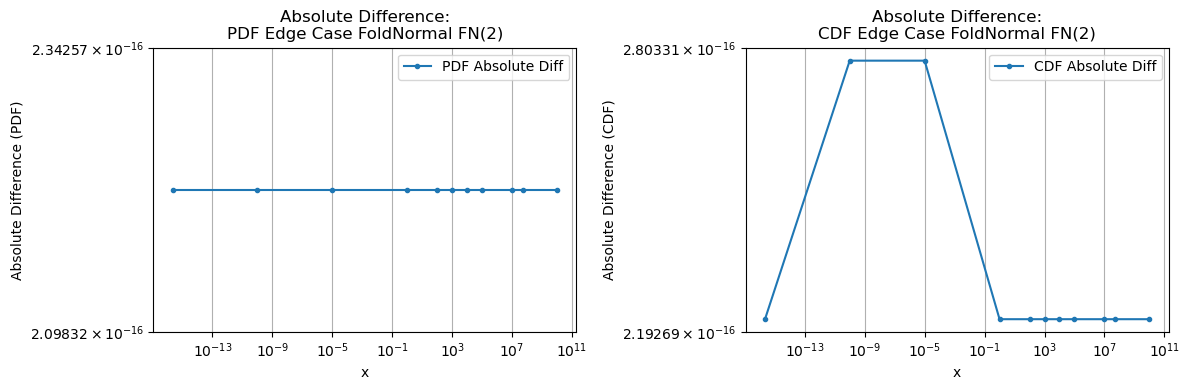

foldnorm(mean=2)#

[21]:

custom_dist = pd.FoldedNormalDistribution(mu=2, normalize=True)
scipy_dist = ss.foldnorm(c=2)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='FoldNormal FN(2)')
_images/_bm_accuracy_40_0.png
_images/_bm_accuracy_40_1.png

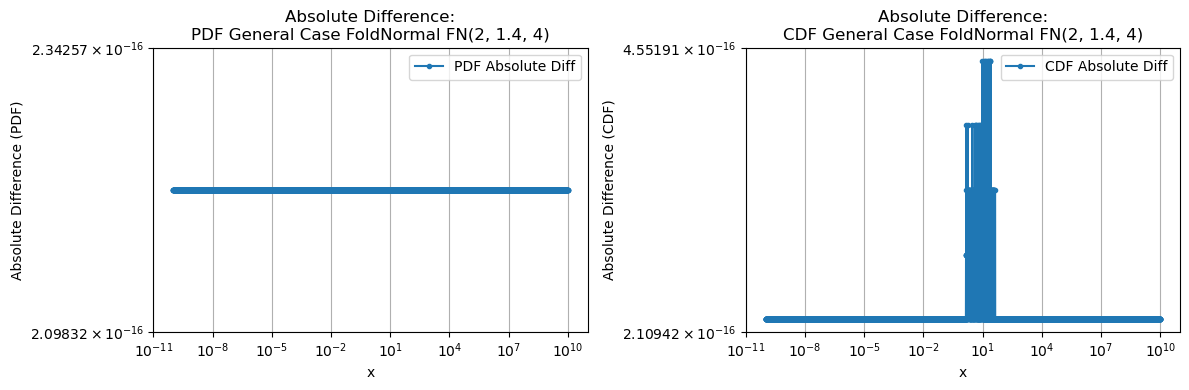

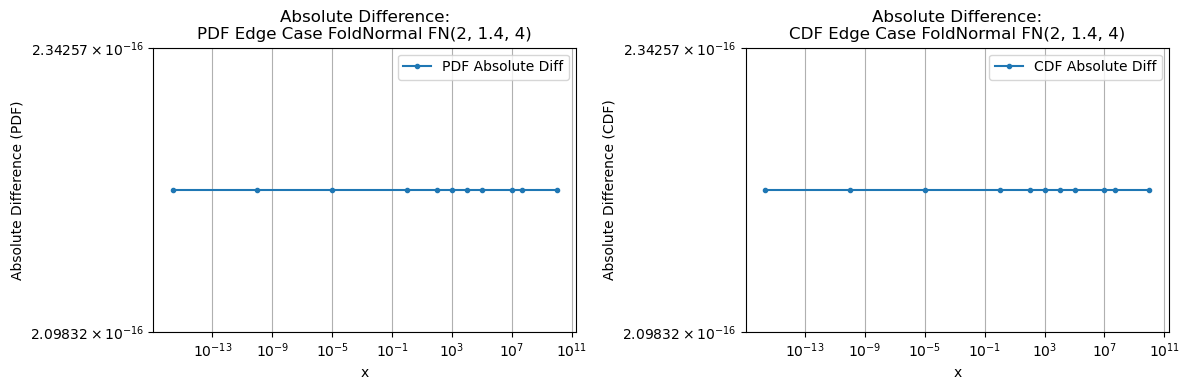

foldnorm(mean=2, loc=1.4, scale=4)#

[22]:

custom_dist = pd.FoldedNormalDistribution(mu=2, sigma=4, loc=1.4, normalize=True)
scipy_dist = ss.foldnorm(c=2, loc=1.4, scale=4)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='FoldNormal FN(2, 1.4, 4)')
_images/_bm_accuracy_42_0.png
_images/_bm_accuracy_42_1.png

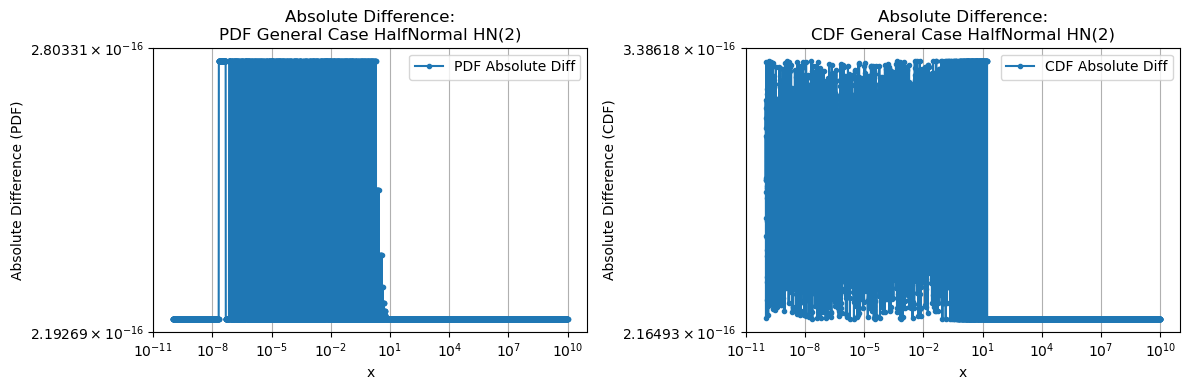

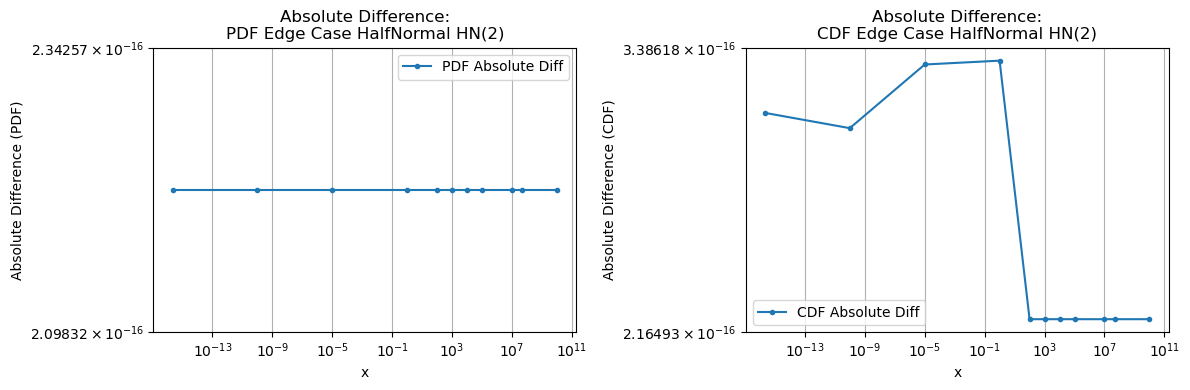

halfNormal(scale=2)#

[23]:

custom_dist = pd.HalfNormalDistribution(scale=2, normalize=True)
scipy_dist = ss.halfnorm(scale=2)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='HalfNormal HN(2)')
_images/_bm_accuracy_44_0.png
_images/_bm_accuracy_44_1.png

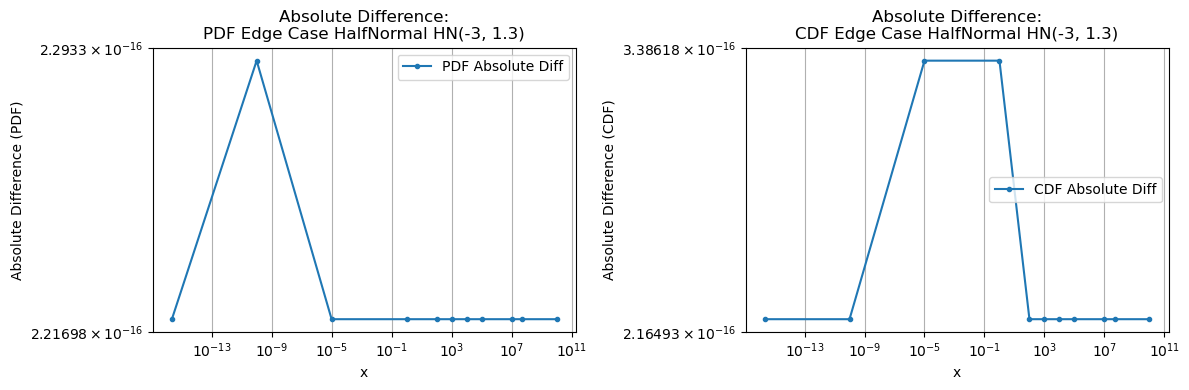

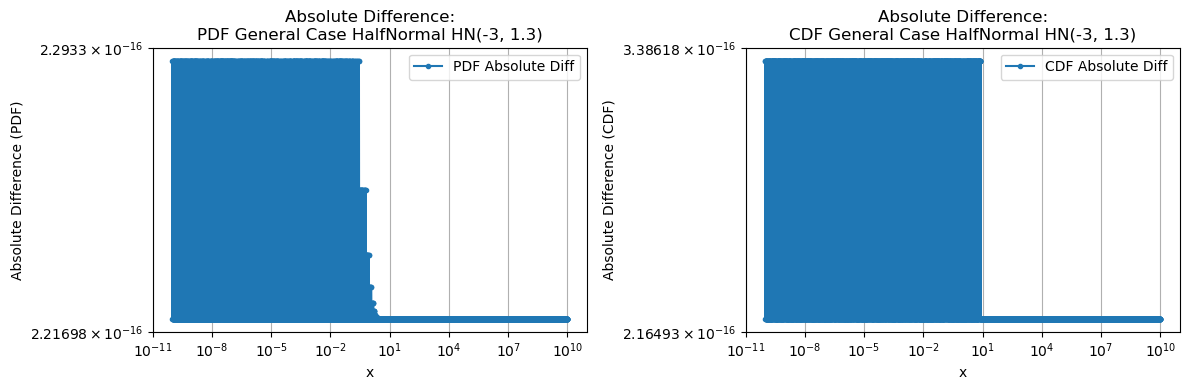

halfnorm(loc=-3, scale=1.3)#

[24]:

custom_dist = pd.HalfNormalDistribution(loc=-3, scale=1.3, normalize=True)
scipy_dist = ss.halfnorm(loc=-3, scale=1.3)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='HalfNormal HN(-3, 1.3)')
_images/_bm_accuracy_46_0.png
_images/_bm_accuracy_46_1.png

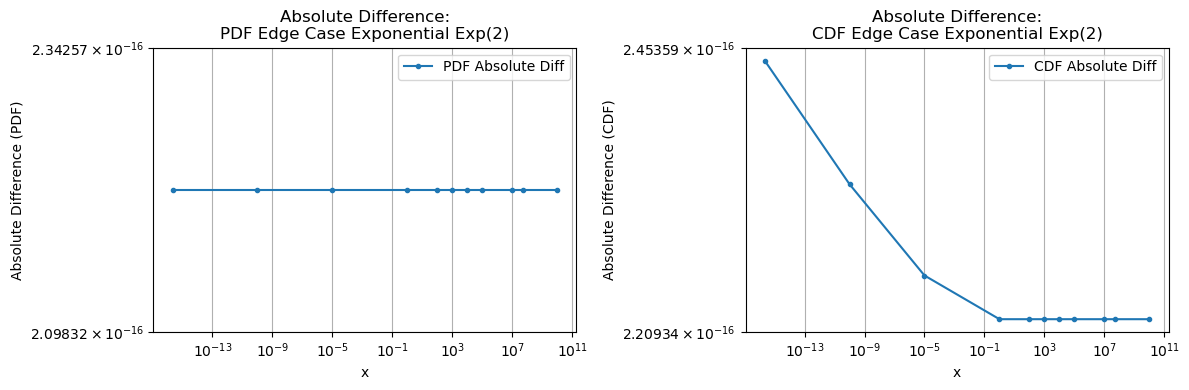

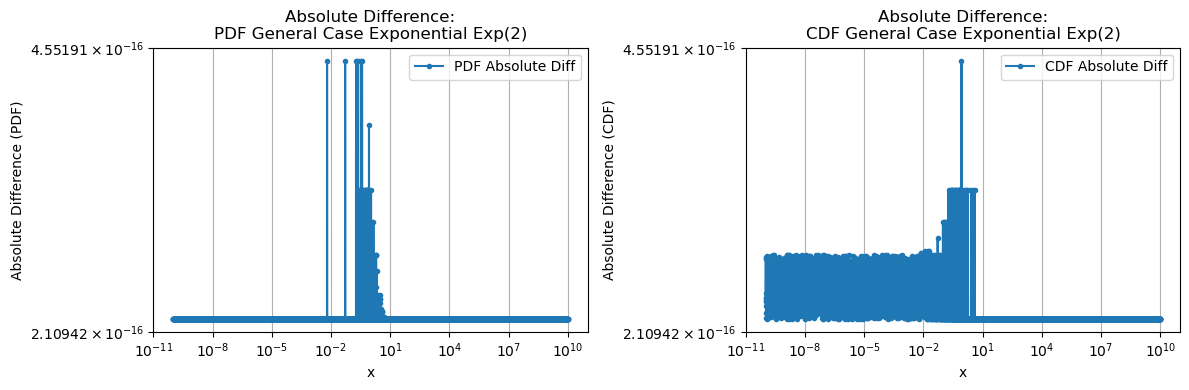

expon(scale=1.4)#

[25]:

custom_dist = pd.ExponentialDistribution(scale=1.4, normalize=True)
scipy_dist = ss.expon(scale=1/1.4)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Exponential Exp(2)')
_images/_bm_accuracy_48_0.png
_images/_bm_accuracy_48_1.png

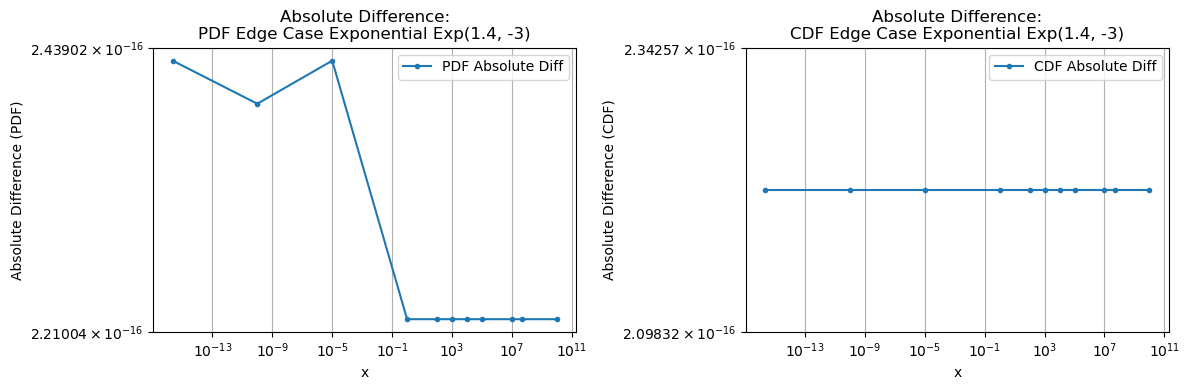

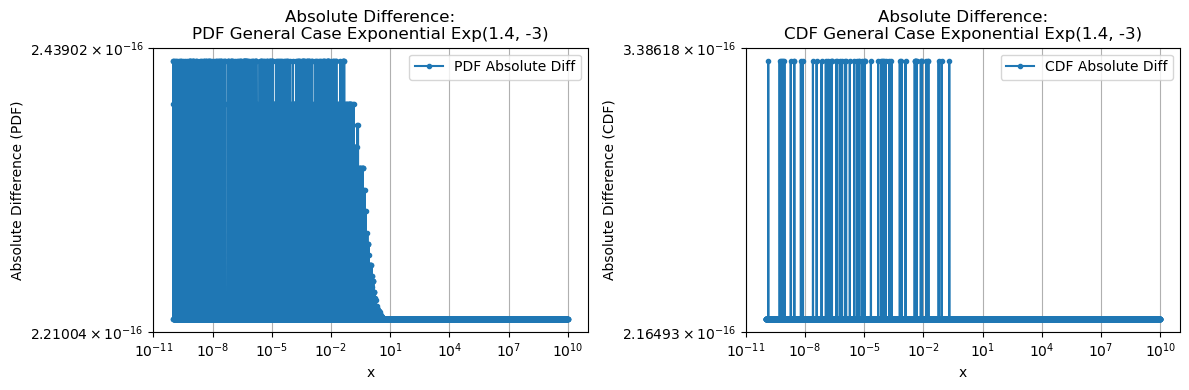

expon(loc=-3, scale=1.4)#

[26]:

custom_dist = pd.ExponentialDistribution(scale=1.4, loc=-3, normalize=True)
scipy_dist = ss.expon(scale=1/1.4, loc=-3)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Exponential Exp(1.4, -3)')
_images/_bm_accuracy_50_0.png
_images/_bm_accuracy_50_1.png
