Accuracy#

This benchmark focuses on comparing the accuracy of pyMultiFit statistical distributions compared to the well-established SciPy library. The focus is on ensuring that pyMultiFit provides reliable results that closely match theoretical values and SciPy outputs, which are widely trusted in the scientific community.

What is Tested?#

  • Probability Density Function (PDF): Compares the computed values for given inputs against the expected results and SciPy outputs.

  • Cumulative Distribution Function (CDF): Verifies that cumulative probabilities match theoretical predictions and SciPy results.

Benchmark setup#

To test accuracy:

  • Both pyMultiFit and SciPy are run on the same input data, using distributions like Gaussian, Beta, and Laplace.

  • Results are compared using metrics such as absolute error, relative error, and visual plots.

  • A range of parameter values and edge cases are included to evaluate robustness and consistency.

Summary#

The accuracy benchmarks were performed for both edge cases, and general cases of x-array. In both these cases; pyMultiFit package consistently shows a remarkable agreement with scipy values upto an average precision of \(<1\times10^{-15}\) for all distributions except standard ArcSineDistribution and ChiSquareDistribution.

  1. For ArcSineDistribution the accuracy is \(\epsilon < 1\times10^{-12}\)

  2. For ChiSquareDistribution the accuracy is \(\epsilon < 1\times10^{-11}\).

Testing#

[1]:

import numpy as np
import scipy.stats as ss

from pymultifit import EPSILON
import pymultifit.distributions as pd
from functions import test_and_plot

[2]:

np.random.seed(43)

[3]:

edge_cases = [np.array([EPSILON, 1e-10, 1e-5, 1, 1e2, 1e3, 1e4, 1e5, 1e7, 0.5e8, 1e10])]
general_cases = [np.logspace(-10, 10, 5_000)]

norm(loc=0, scale=1)#

[ ]:

custom_dist = pd.GaussianDistribution(normalize=True)
scipy_dist = ss.norm()

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title="Gaussian N(0, 1)")

norm(loc=3, scale=0.1)#

[ ]:

custom_dist = pd.GaussianDistribution(mu=3, std=0.1, normalize=True)
scipy_dist = ss.norm(loc=3, scale=0.1)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Gaussian N(3, 0.1)')

laplace(loc=0, scale=1)#

[4]:

custom_dist = pd.LaplaceDistribution(normalize=True)
scipy_dist = ss.laplace()

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Laplace L(0, 1)')

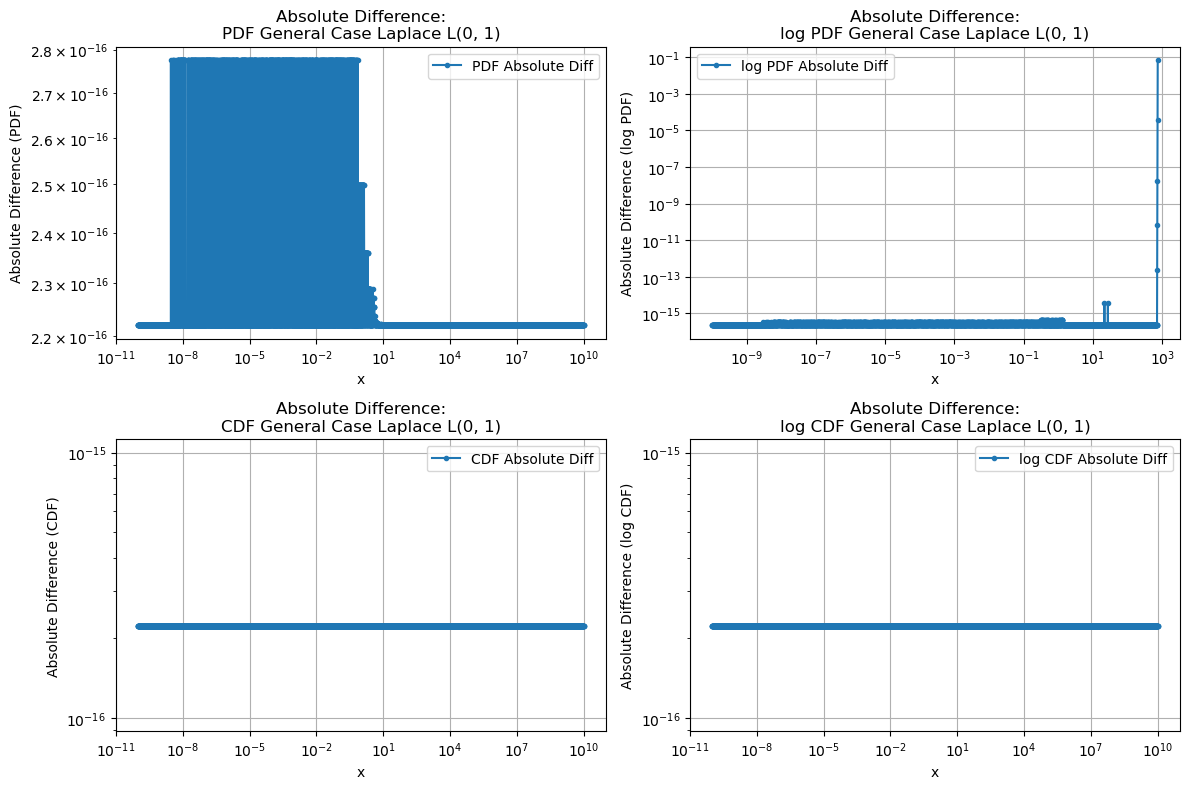

../_images/benchmarks__bm_accuracy_10_0.png

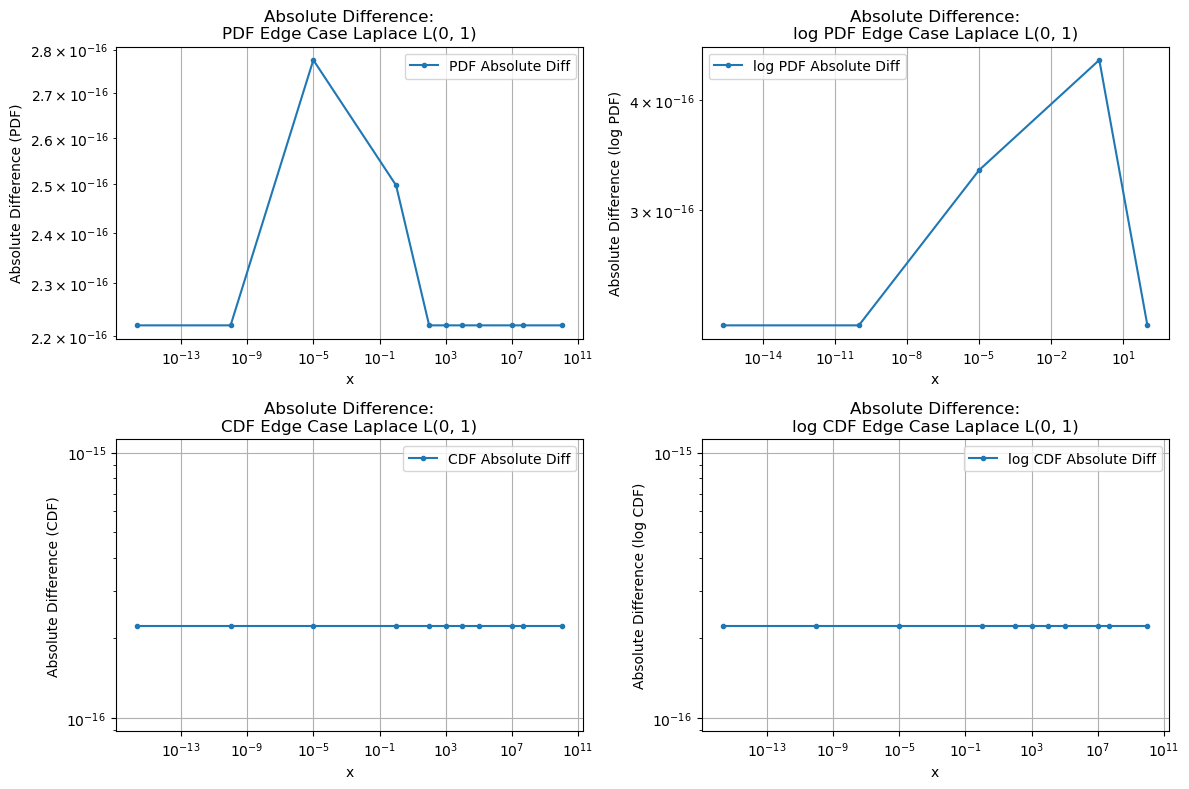

../_images/benchmarks__bm_accuracy_10_1.png

laplace(loc=-3, scale=3)#

[5]:

custom_dist = pd.LaplaceDistribution(mean=-3, diversity=3, normalize=True)
scipy_dist = ss.laplace(loc=-3, scale=3)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Laplace(-3, 3)')

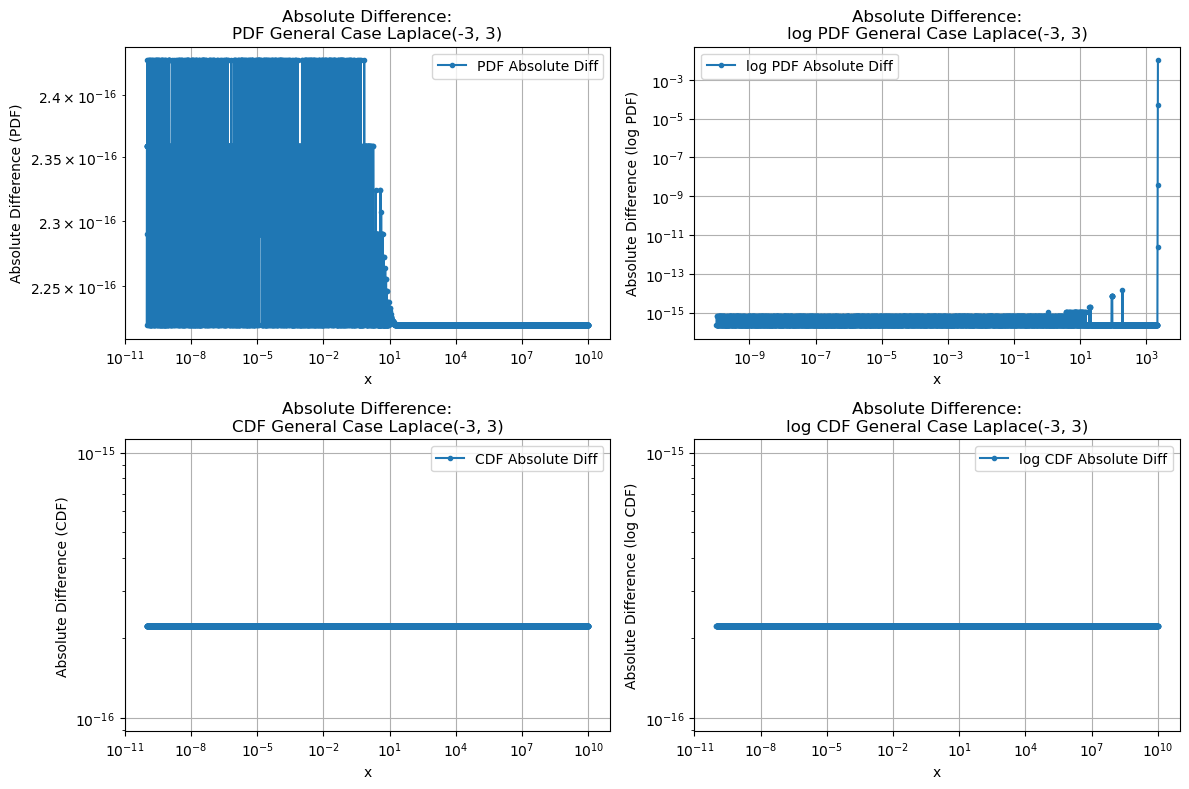

../_images/benchmarks__bm_accuracy_12_0.png

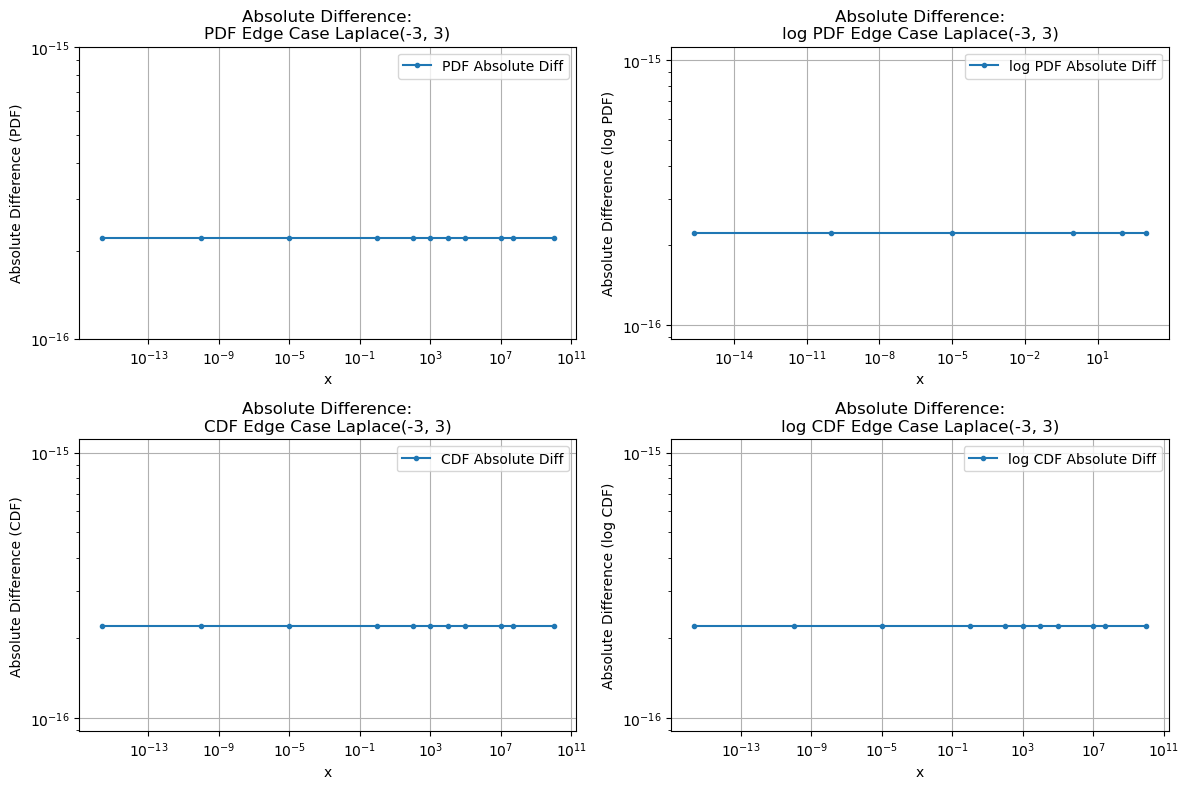

../_images/benchmarks__bm_accuracy_12_1.png

skewnorm(a=1, loc=0, scale=1)#

[ ]:

custom_dist = pd.SkewNormalDistribution(normalize=True)
scipy_dist = ss.skewnorm(a=1)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='SkewNorm S(1, 0, 1)')

skewnorm(a=3, loc=-3, scale=0.5)#

[ ]:

custom_dist = pd.SkewNormalDistribution(shape=3, location=-3, scale=0.5, normalize=True)
scipy_dist = ss.skewnorm(a=3, loc=-3, scale=0.5)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='SkewNorm S(3, -3, 0.5)')

lognorm(s=1, loc=0, scale=1)#

[ ]:

custom_dist = pd.LogNormalDistribution(mu=1, std=1, loc=0, normalize=True)
scipy_dist = ss.lognorm(s=1, loc=0, scale=1)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='LogNorm L(1, 0, 1)')

lognorm(s=3, loc=-5, scale=0.5)#

[ ]:

custom_dist = pd.LogNormalDistribution(mu=0.5, std=3, loc=-5, normalize=True)
scipy_dist = ss.lognorm(s=3, loc=-5, scale=0.5)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='LogNorm L(3, -5, 0.5)')

beta(a=1, b=1)#

[ ]:

custom_dist = pd.BetaDistribution(alpha=1, beta=1, normalize=True)
scipy_dist = ss.beta(a=1, b=1)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Beta B(1, 1)')

beta(a=5, b=80, loc=-3, scale=5)#

[ ]:

custom_dist = pd.BetaDistribution(alpha=5, beta=80, loc=-3, scale=5.6, normalize=True)
scipy_dist = ss.beta(a=5, b=80, loc=-3, scale=5.6)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Beta B(5, 80, -3, 5.6)')

arcsine()#

[ ]:

custom_dist = pd.ArcSineDistribution(normalize=True)
scipy_dist = ss.arcsine()

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='ArcSine AS()')

arcsine(loc=3, scale=2.2)#

[ ]:

custom_dist = pd.ArcSineDistribution(loc=3, scale=2.2, normalize=True)
scipy_dist = ss.arcsine(loc=3, scale=2.2)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='ArcSine AS(3, 2.2)')

gamma(a=1, loc=0, scale=1)#

[ ]:

custom_dist = pd.GammaDistributionSS(shape=1, scale=1, loc=0, normalize=True)
scipy_dist = ss.gamma(a=1, loc=0, scale=1)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Gamma G(1, 0, 1)')

gamma(a=1.27, loc=-3, scale=1.5)#

[ ]:

custom_dist = pd.GammaDistributionSS(shape=1.27, scale=1.5, loc=-3, normalize=True)
scipy_dist = ss.gamma(a=1.27, loc=-3, scale=1.5)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Gamma G(1.27, -3, 1.5)')

\(\chi^2\)(dof=1)#

[ ]:

custom_dist = pd.ChiSquareDistribution(degree_of_freedom=1, normalize=True)
scipy_dist = ss.chi2(df=1)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Chi2 C(1)')

\(\chi^2\)(dof=2, loc=-2.3, scale=0.3)#

[ ]:

custom_dist = pd.ChiSquareDistribution(degree_of_freedom=2, loc=-2.3, scale=0.3, normalize=True)
scipy_dist = ss.chi2(df=2, loc=-2.3, scale=0.3)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Chi2 C(2, -2.3, 0.3)')

\(\chi^2\)(dof=2.5, loc=-2.3, scale=0.3)#

[ ]:

custom_dist = pd.ChiSquareDistribution(degree_of_freedom=2.5, loc=-2.3, scale=0.3, normalize=True)
scipy_dist = ss.chi2(df=2.5, loc=-2.3, scale=0.3)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Chi2 C(2.5, -2.3, 0.3)')

foldnorm(mean=2)#

[ ]:

custom_dist = pd.FoldedNormalDistribution(mu=2, normalize=True)
scipy_dist = ss.foldnorm(c=2)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='FoldNormal FN(2)')

foldnorm(mean=2, loc=1.4, scale=4)#

[ ]:

custom_dist = pd.FoldedNormalDistribution(mu=2, sigma=4, loc=1.4, normalize=True)
scipy_dist = ss.foldnorm(c=2, loc=1.4, scale=4)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='FoldNormal FN(2, 1.4, 4)')

halfNormal(scale=2)#

[ ]:

custom_dist = pd.HalfNormalDistribution(scale=2, normalize=True)
scipy_dist = ss.halfnorm(scale=2)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='HalfNormal HN(2)')

halfnorm(loc=-3, scale=1.3)#

[ ]:

custom_dist = pd.HalfNormalDistribution(loc=-3, scale=1.3, normalize=True)
scipy_dist = ss.halfnorm(loc=-3, scale=1.3)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='HalfNormal HN(-3, 1.3)')

expon(scale=1.4)#

[ ]:

custom_dist = pd.ExponentialDistribution(scale=1.4, normalize=True)
scipy_dist = ss.expon(scale=1/1.4)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Exponential Exp(2)')

expon(loc=-3, scale=1.4)#

[ ]:

custom_dist = pd.ExponentialDistribution(scale=1.4, loc=-3, normalize=True)
scipy_dist = ss.expon(scale=1/1.4, loc=-3)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Exponential Exp(1.4, -3)')

uniform()#

[ ]:

custom_dist = pd.UniformDistribution(normalize=True)
scipy_dist = ss.uniform()

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Uniform Uniform()')

uniform(loc=-3, scale=2)#

[ ]:

custom_dist = pd.UniformDistribution(low=-3, high=2, normalize=True)
scipy_dist = ss.uniform(loc=-3, scale=2)

test_and_plot(general_case=general_cases, edge_case=edge_cases, custom_dist=custom_dist, scipy_dist=scipy_dist,
              title='Uniform Uniform(-3, 2)')
